how to make engineered quartz stone

how to make engineered quartz stone introduce

how to make engineered quartz stone is mainly controlled by computer in the vacuum die casting machine. Most of them are cured at medium temperature.

make engineered stone first step mix the fillers with different mesh numbers according to the required proportion, remix them with the resin added with medium temperature initiator and color paste, and pump them to the hopper at the upper part of the pouring machine for mixing.

At the pouring port, control the moving speed, moving direction and blanking speed of the pouring port with the console to pour into the prepared mold.

After pouring, send the mold to the bottom of the press, press it with vacuum and high pressure, conduct high temperature treatment,how to make engineered quartz stone and finally polish it to make the finished product.

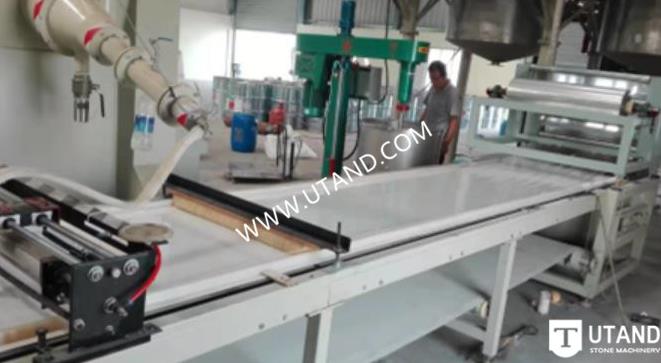

how to make solid surface

how to make engineered quartz stone video

This is a video of our client, show how to make engineered quartz stone ?

how to make engineered quartz stone process

1. Raw material selection and mixing

how to make engineered quartz stone process first step look for high-quality quartz minerals and other additives. The raw materials of quartz minerals with various particle sizes are purified by special purification equipment to remove impurities such as sawdust and metal chips.

engineered quartz stone machinery

Then they are transported to the raw material mixing tower to mix the minerals and other additives step by step. Raw materials and even mixing without impurities are the fundamental guarantee for the defect free of sheet metal.

2. Fixed thickness forming

The proportioned and mixed raw materials enter the super large molding machine, and the flatness and thickness of the sheet blank are precisely adjusted by the computer-induced thickness setting equipment. After molding, they are directly placed on the belt conveyor belt, and only one sheet is formed at a time.

3、Vacuum die casting

In the vacuum die casting machine, the computer precisely controls the whole process of the formed blank. The vacuum equipment installed at the bottom of the ground exhausts the air in the mineral space to close to the vacuum.

forming the closest accumulation among ore sand, ore powder and other additives, achieving the effect of no hole. The operation time of each plate is about 15 minutes.This is a key step in how to make engineered quartz stone process.

4.The vacuum die-casting of each oversized sheet is used to ensure the compactness and non porosity of the material.

The larger the sheet size, the more complex the process guarantee.The plate from the vacuum die-casting machine is directly fed into the drying building at 90-110 ℃, and solidified at medium temperature for 50-120min.

Baking building baking period of time, is the quartz plate to a certain degree of curing. Ensure the excellent properties of the plate.

artificial stone production line

5.Surface Polishing

In the automatic roller conveyor line, the large plate is slowly moved, through 36 large-scale special grinding heads, which are thick and thin, rotating at high speed and moving at a uniform speed.

supplemented by a large number of cooling water and different abrasives, and the surface is polished to a special glossy mirror effect. Thus the surface treatment is fully displayed.how to make engineered quartz stone at the end of the stage

how to make engineered quartz stone technology

how to make engineered quartz stone technology is composed of more than 90% natural quartz and about 10% pigment, resin and other additives for regulating adhesion and curing.

how to make engineered quartz stone technology is a large-scale plate pressed by a special machine under certain physical and chemical conditions. Its main material is quartz.

Utand is a professional manufacturer of quartz production line, with complete model, timely supply and reasonable price.

Utand how to make engineered quartz stone technology adopts negative pressure vacuum, high-frequency vibration molding, heating and curing technology, and the quartz produced is hard and dense in structure.

with wear-resistant, pressure resistant, high temperature resistant, corrosion-resistant, anti-seepage and other characteristics unmatched by other decorative materials.

Artificial stone making machine
